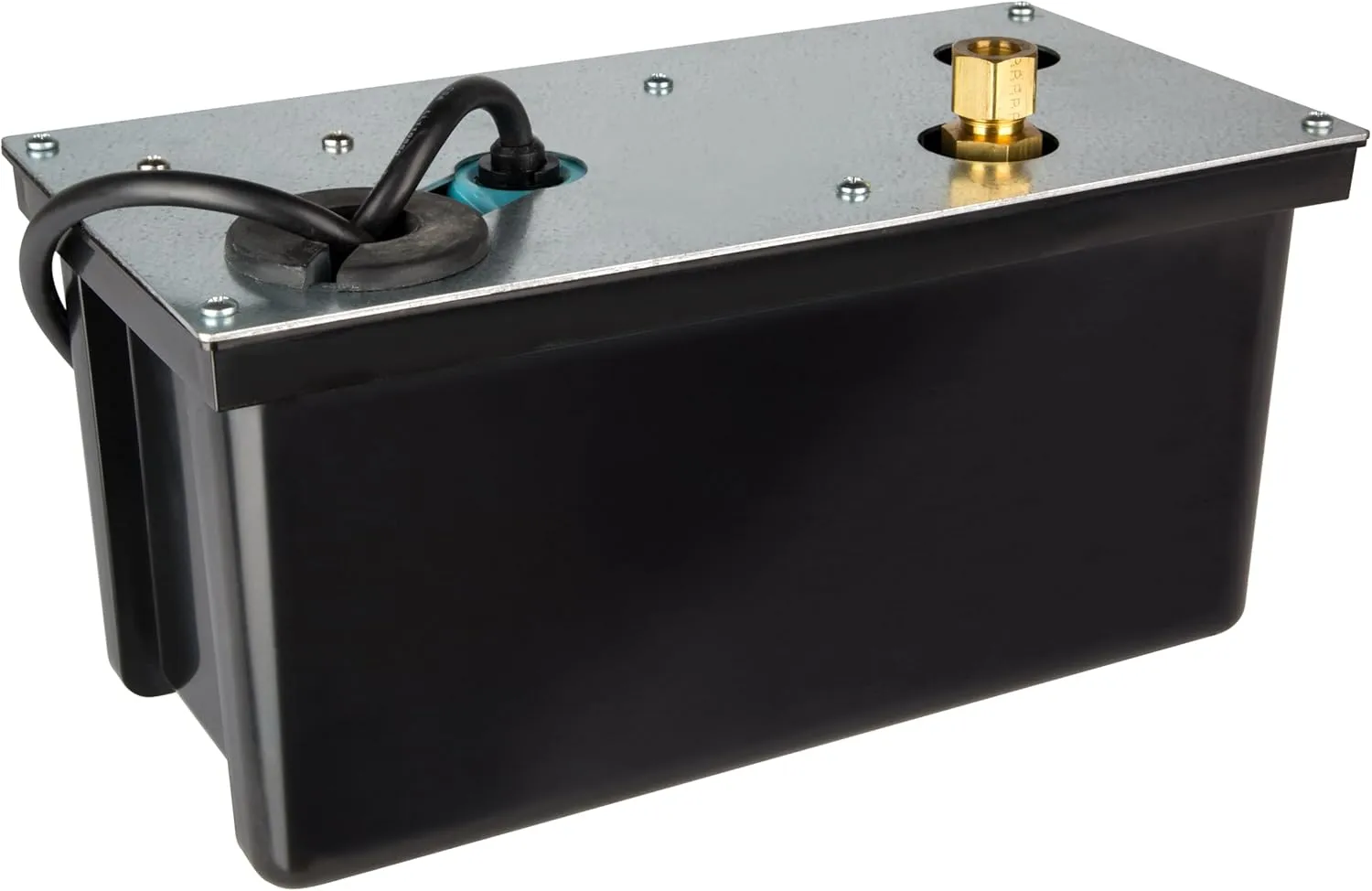

- CONDENSATE REMOVAL PUMP: utilizing a sealed submersible pump with collection tank, the 3-ABS is an ideal choice for a self-contained, high volume, high head condensate removal system
- AUTOMATIC OPERATION: an integrated, unique float switch design assures reliability and security while providing easy access to the float for servicing; on at 4.5"; off at 3.5"
- PUMP DISCHARGE: 1/2" MNPT pump discharge with brass check valve and compression fitting for 1/2" OD copper or rigid plastic tubing
- INCLUDES: 310 GPH epoxy-coated cast aluminum pump with maintenance free motor and removable inlet filter screen, 1-gallon ABS tank with galvanized steel tank cover and 1-1/8" inlet opening

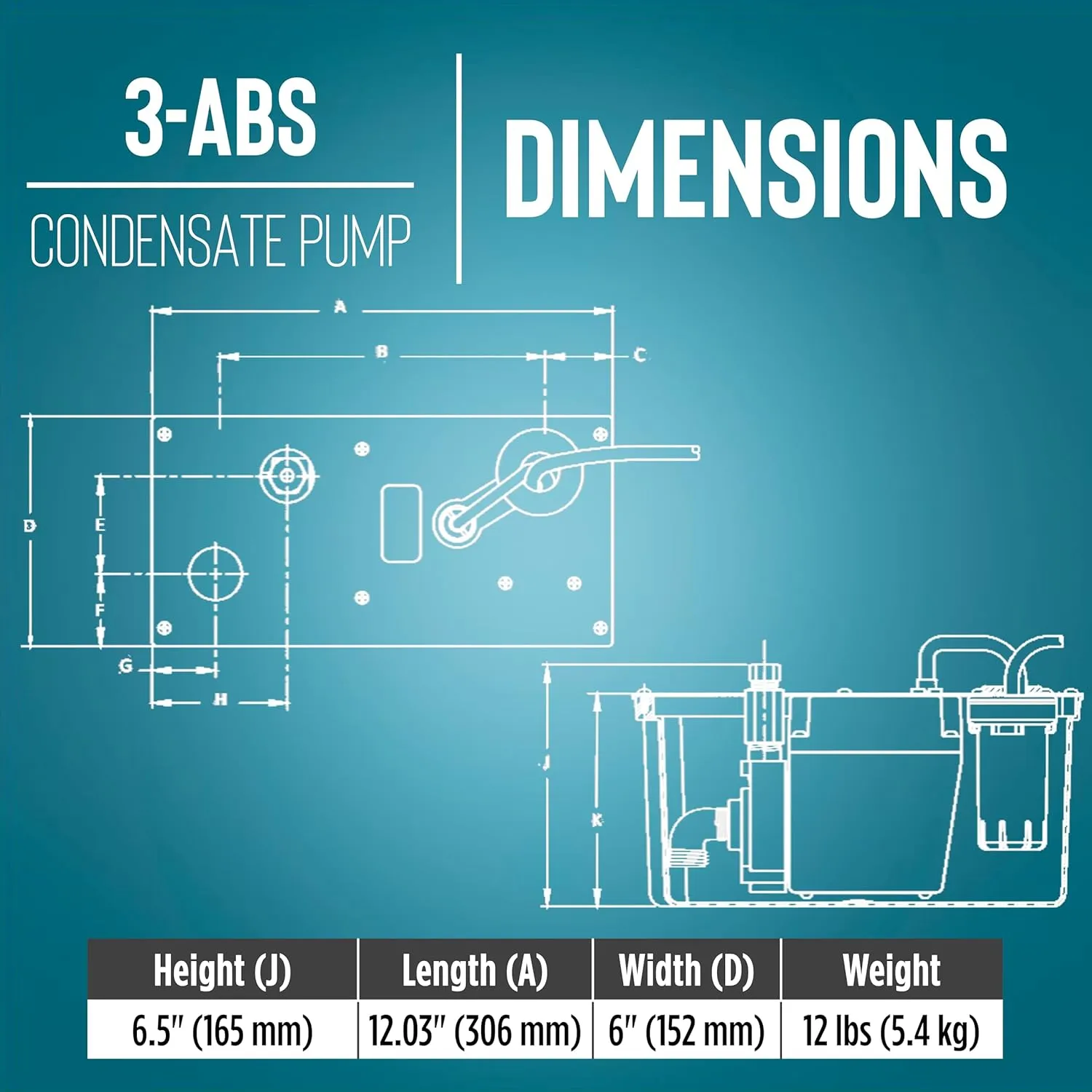

- SPECIFICATIONS: 115V, 1/12 HP, 3.5 Amps, 210 Watts, 310 GPH at 1' lift; 26' shut-off, 11.2 PSI, 9' power cord, 12" long x 6"wide x 6.5" high, suitable for intermittent water temperature up to 120°F
"Utilizing a sealed, submersible pump with collection tank, the 3-ABS is an ideal choice for a self-contained, high volume, high head condensate removal pump. An integrated unique float switch design assures reliability and security while providing easy access to the float for servicing.
Features:
- Includes a 1-gallon ABS tank
- Permanently lubricated motor bearings require no maintenance during the life of the pump
- Oil-filled to maximize heat dissipation
- Epoxy-coated cast aluminum pump housing
- Galvanized steel tank cover has 1-1/8"" inlet opening
- Automatic operation: on level - 4.5""; off level - 3.5""
- Easy to remove float housing for servicing
- Includes removable inlet filter screen
- 1/2"" MNPT pump discharge with brass check valve and compression fitting for 1/2"" OD copper or rigid plastic tubing
- Power 1/12 hp pump motor delivers 310 GPH at 1' lift
- Suitable for intermittent water temperature up to 120°F
- Includes 9' power cord with molded plug
"
