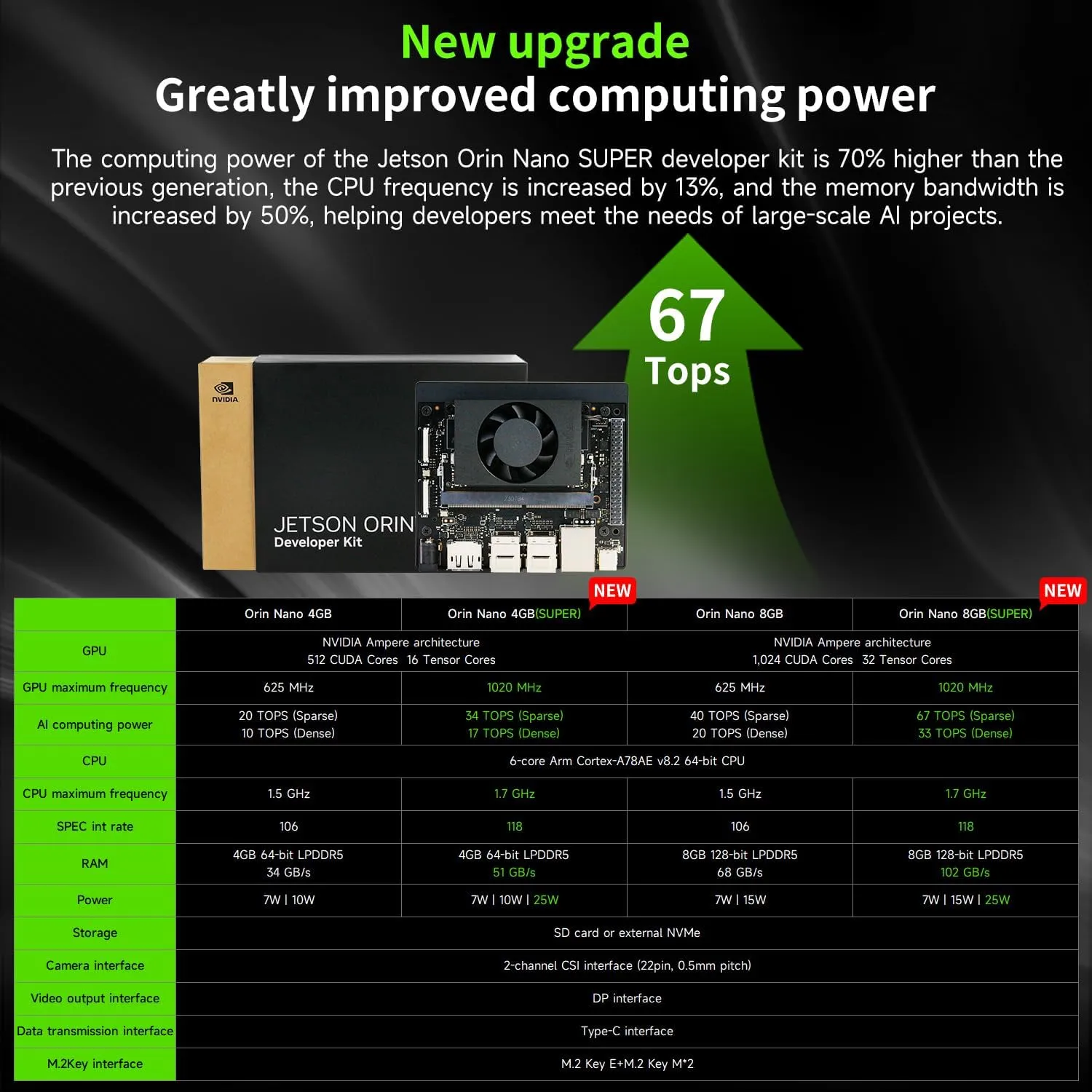

- 【Core Parameters】AI Perf:67 TOPS GPU:1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores CPU:6-core Arm Corte-A78AE v8.2 64-bit CPU 1.5MB L2 4MB L3 Memory:8GB 128-bit LPDDR5 68 GB/s Storage: external NVMe via M.2 Key M (NOTE:SUB Board No SD Card Slot)

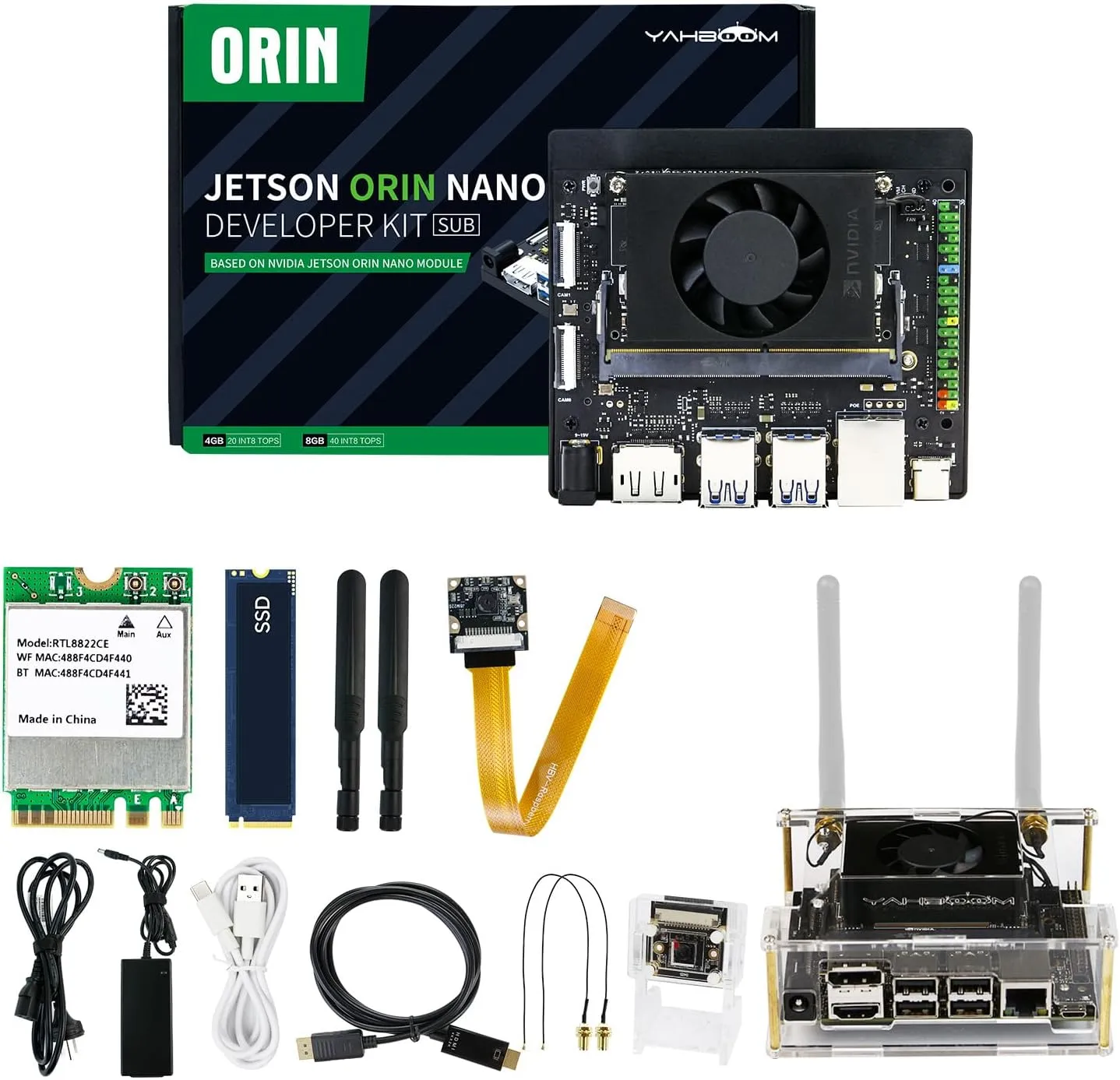

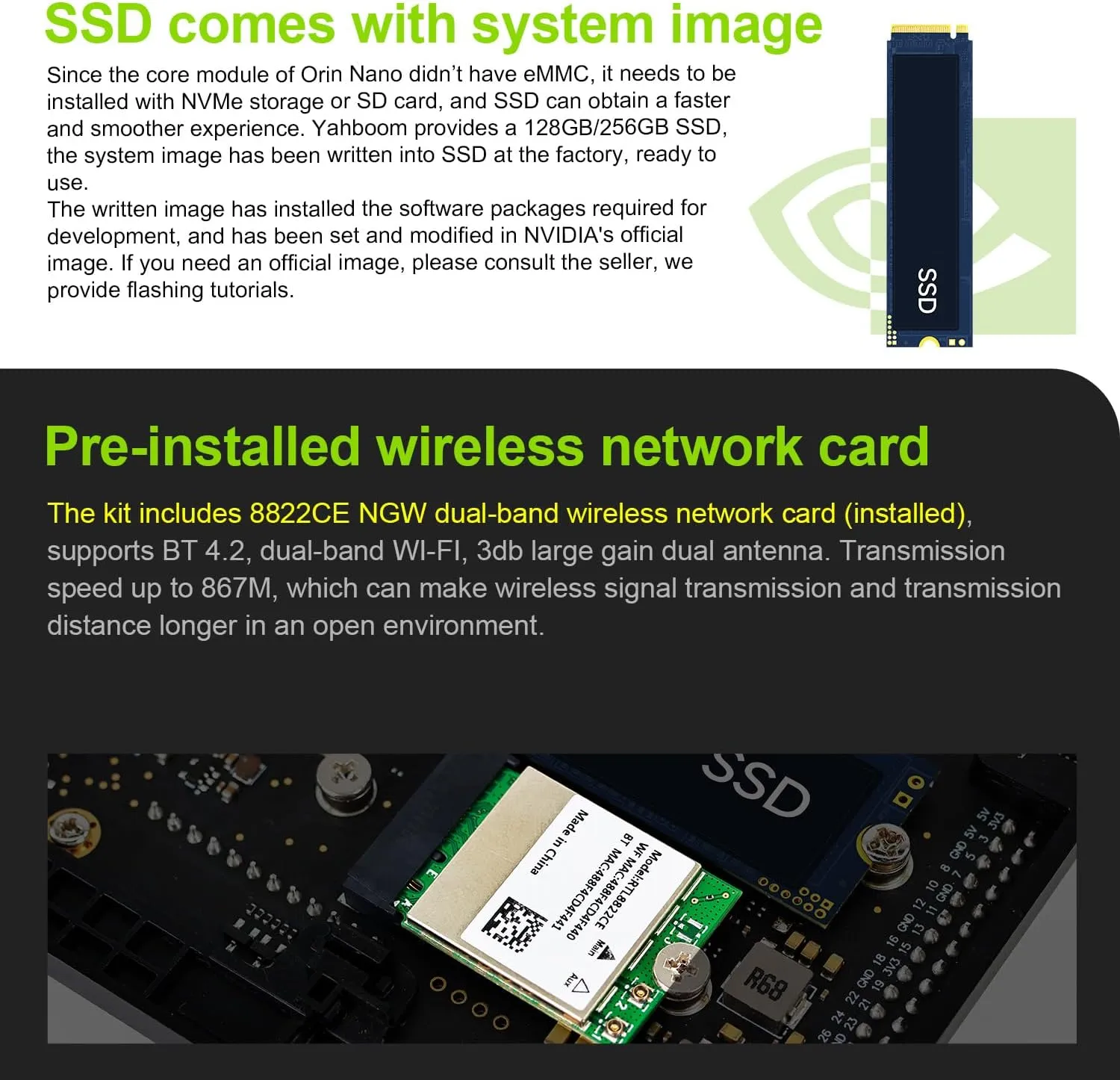

- 【Packing List】★Developer Kit: Orin Nano 4GB/8GB*1 (core module and carrier board installed), power adapter*1, antenna*2, wireless network card*1 (installed), SSD*1;★Basic Kit: Developer Kit DP to HDMI cable*1, Type-C cable*1, acrylic case*1; ★Advanced Kit: Basic Kit IMX219-77° Camera*1, Camera case*1; ★Mini PC Kit: Basic Kit-Acrylic case Cube Case USB Camera; ★Ultimate Kit: Mini PC Kit 15.6inch Display Wireless Keyboard Mouse Set.

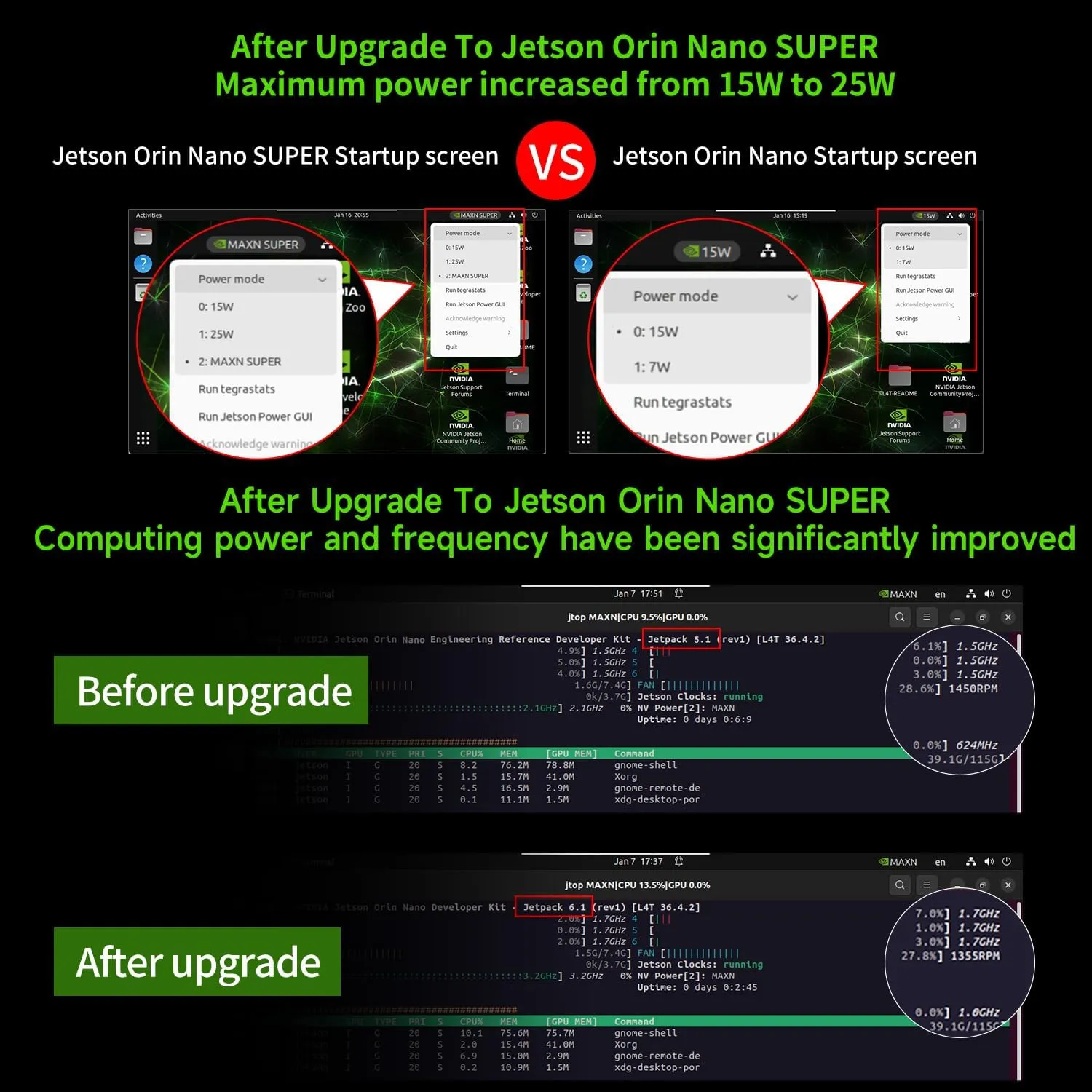

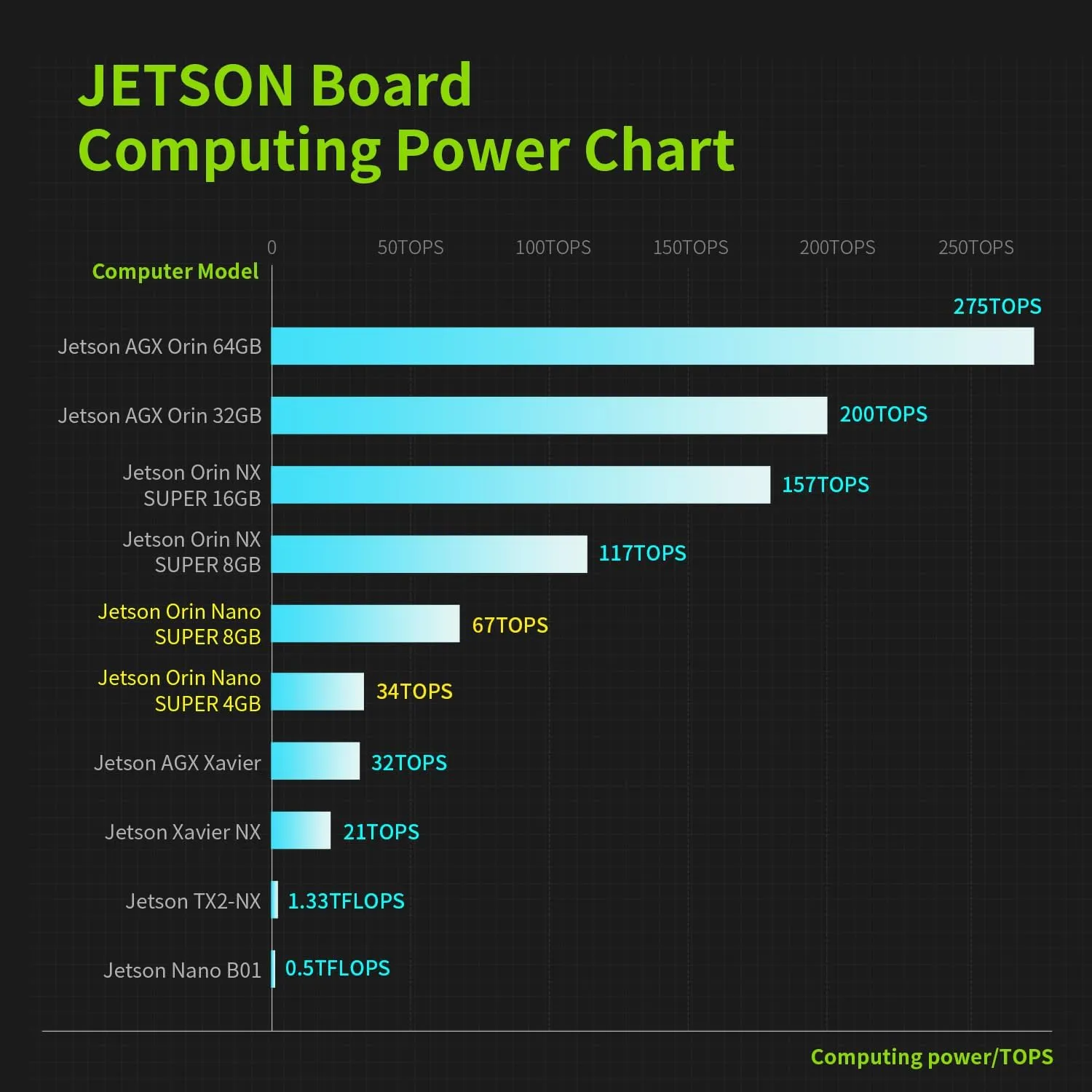

- 【AI Upgrade】Jetson Orin Nano series modules are compact in size but can deliver up to 34-67 TOPS of AI performance, with power consumption ranging from 7 watts to 25 watts. Compared to the Jetson Nano B01, it offers up to 80 times the performance and sets a new standard for entry-level edge AI.

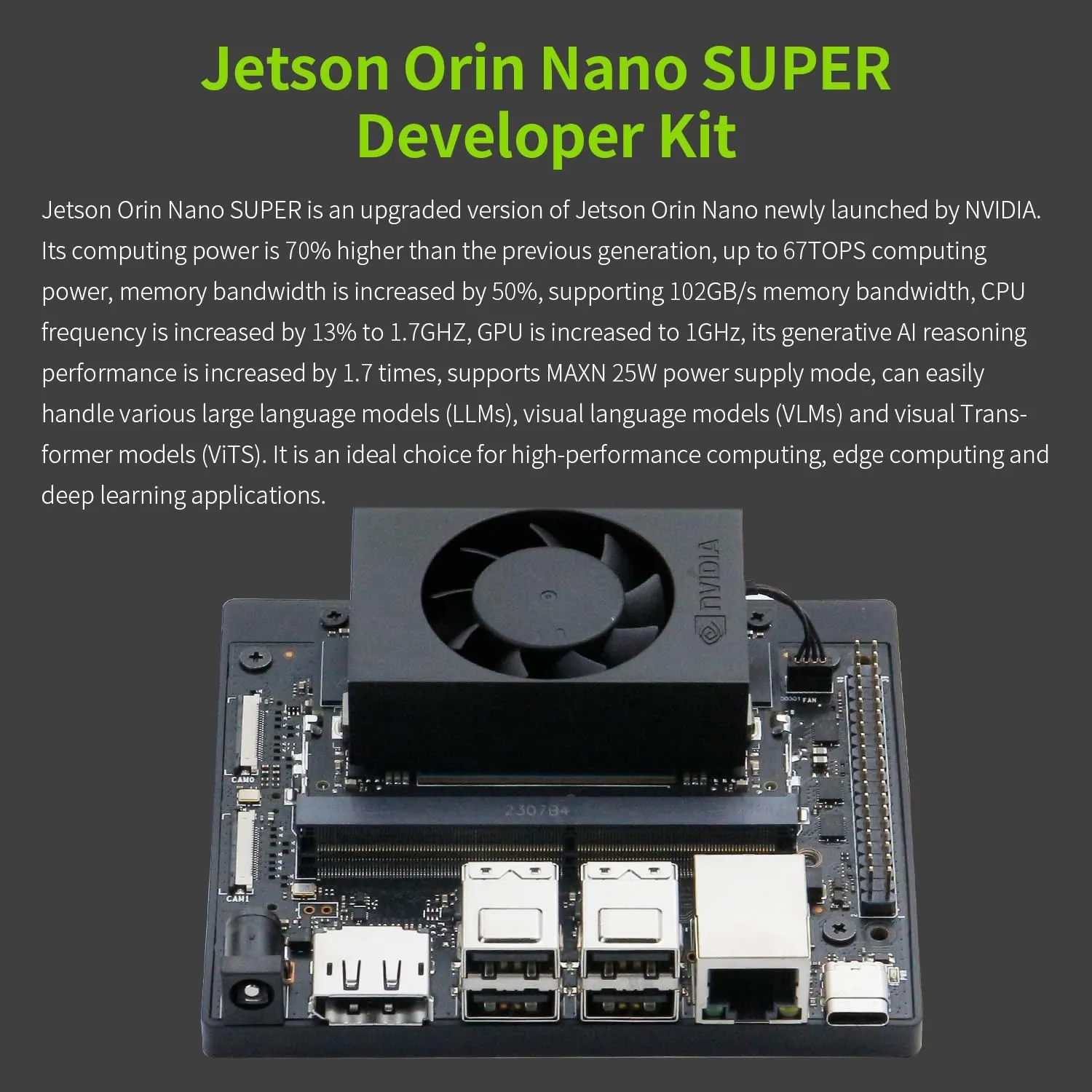

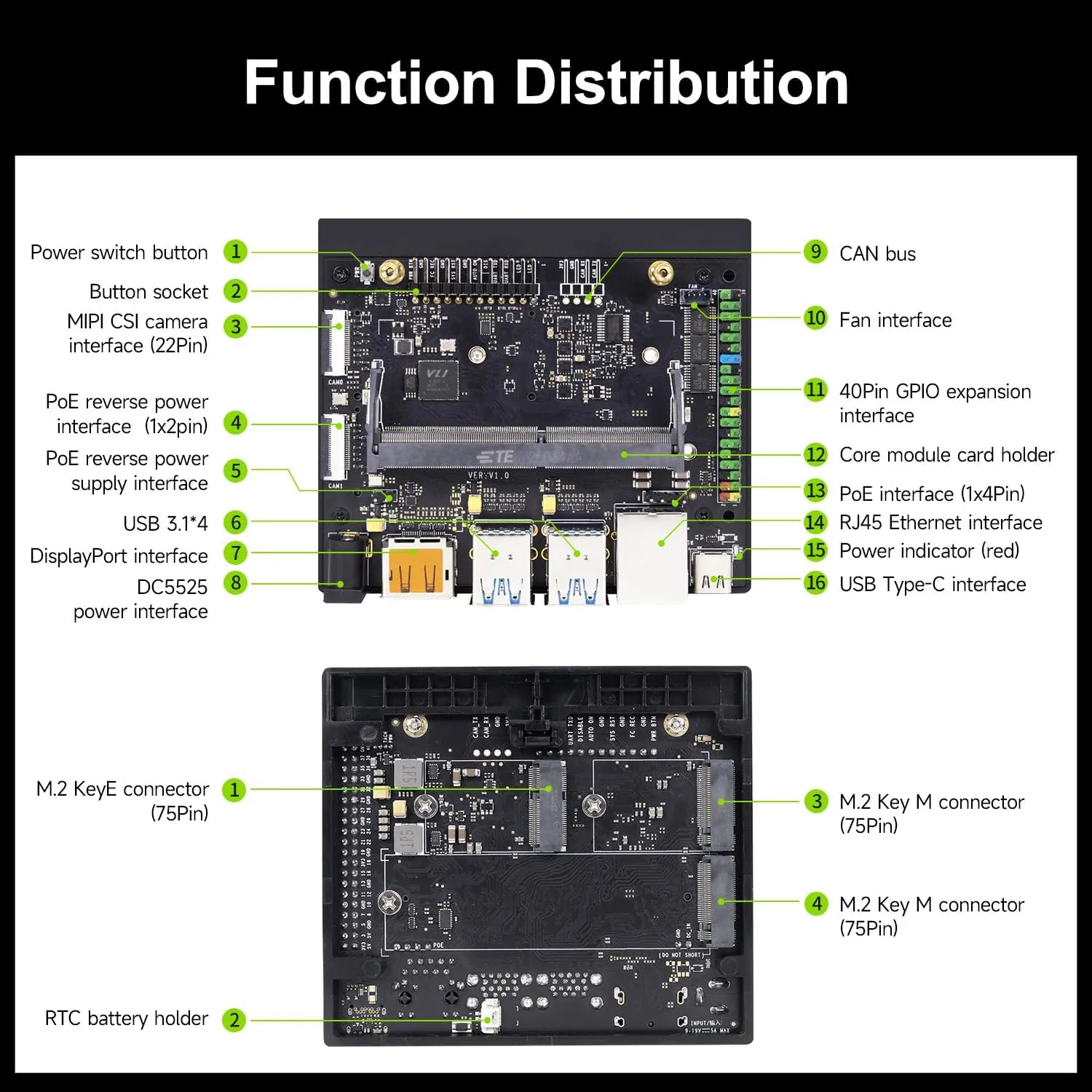

- 【Highly compatible carrier board】Yahboom's carrier board is fully compatible with orin nano module. Compared to carrier boards that use Jetson Nano on the market, the newly upgraded circuit supports 25W power mode, which enables larger and more complex neural networks and fully leverages the performance of the core module. The resources, size, and interfaces of the Yahboom carrier board are consistent with the official board, with the only difference addition of power switch button.

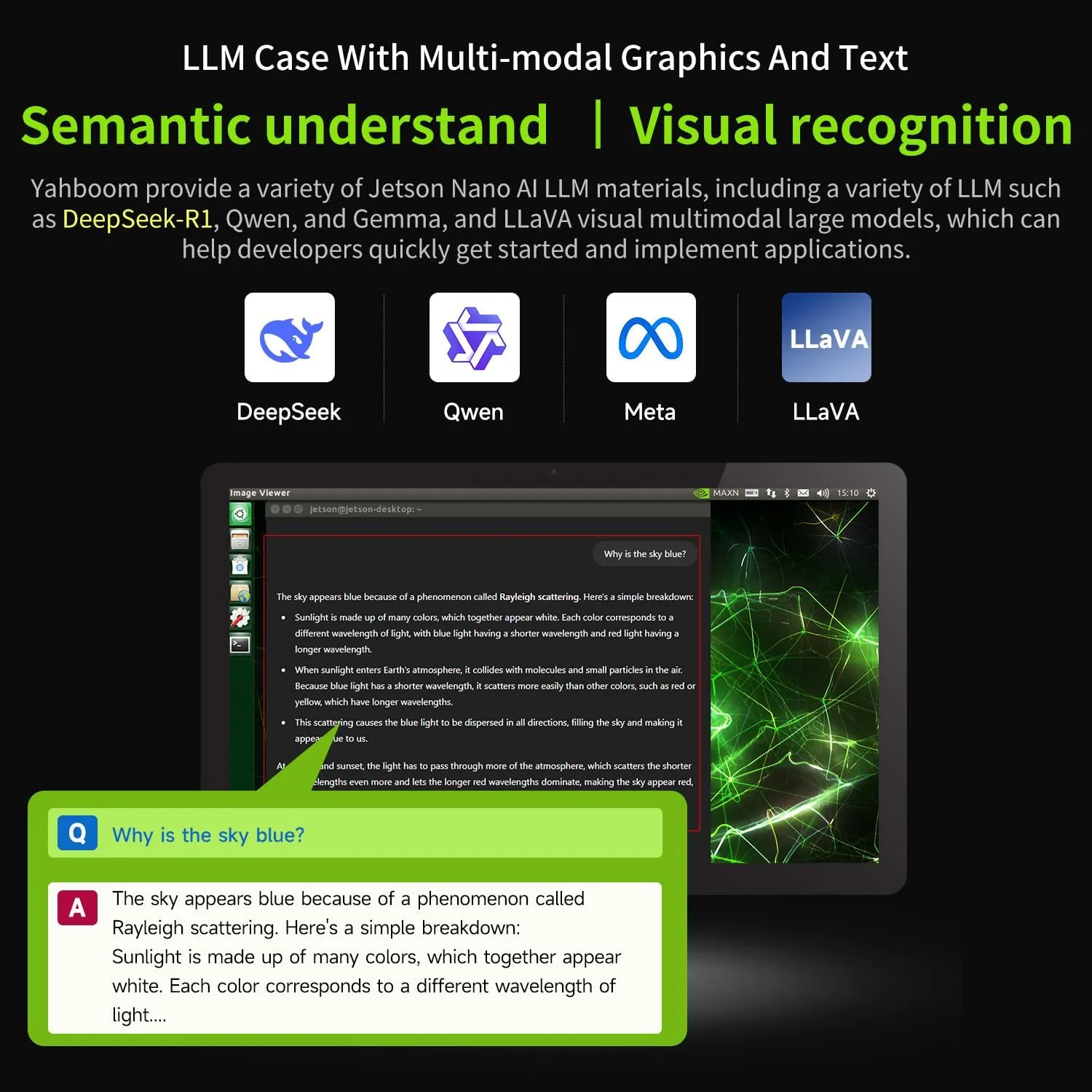

- 【Tutorial materials provided】The JETSON system based on Ubuntu 22.04 provides a complete desktop Linux environment with accelerated graphics, supporting NVIDI-ACUDA 12.6, TensorRT 10.7.0, cuDNN 9.6.0, OpenCV 4.10.0, etc. The performance on AI LLM, VLM and visual Transformer is significantly improved compared with the previous generation.
